parking spaces as integral parts of a company presentation

German Design Award Winner 2018 reddot design award winner 2017

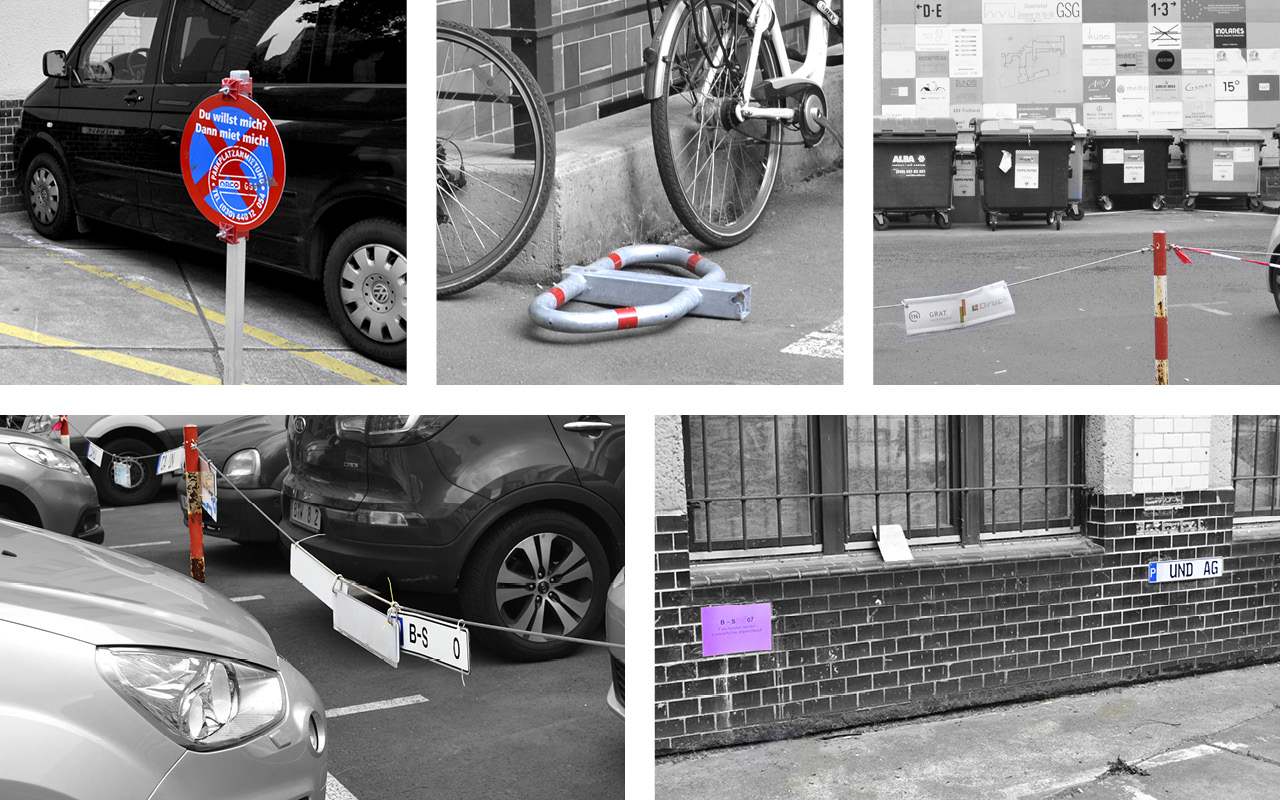

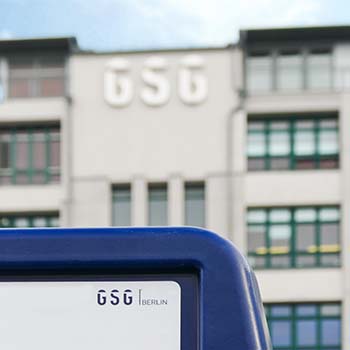

Usually, real estate operators also rent out parking spaces for their commercial premises. Changing tenants require the frequent reassignment of parking areas. The result is a confusing sign accumulation and an incoherent overall impression. In order to reserve parking spaces for tenants, these areas are marked separately and additional parking barriers are used. Among these barriers are fixed brackets, which can be folded down with a key, or complicated lowerable bollards as well as shut-off chains. This means that parking spaces are blocked, but the allocation and labeling must be handled separately: for example in the form of permanently installed license plates or improvised"signs" such as paper printouts in transparent covers. Often, these less-than-ideal solutions are poorly visible, short-lasting and visually unsatisfactory. Often, operators lack the awareness of these problems. Not primarily visually, but mainly functionally, there is a need for action in the management of ​​parking spaces. Guests should quickly find"their" parking, leased parking areas should be clearly identifiable and available areas should be marked as such. The GSG Berlin (Gewerbesiedlungs-Gesellschaft mbH) has realized that it must act in order to make their real estate more attractive for tenants. That was the assignment to IONDESIGN Berlin.

Schöner Tisch - Tischgestell

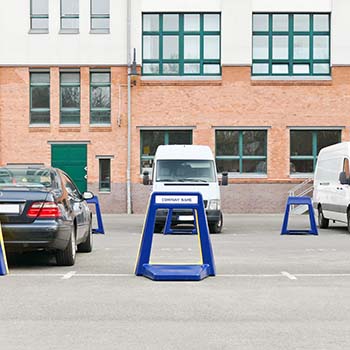

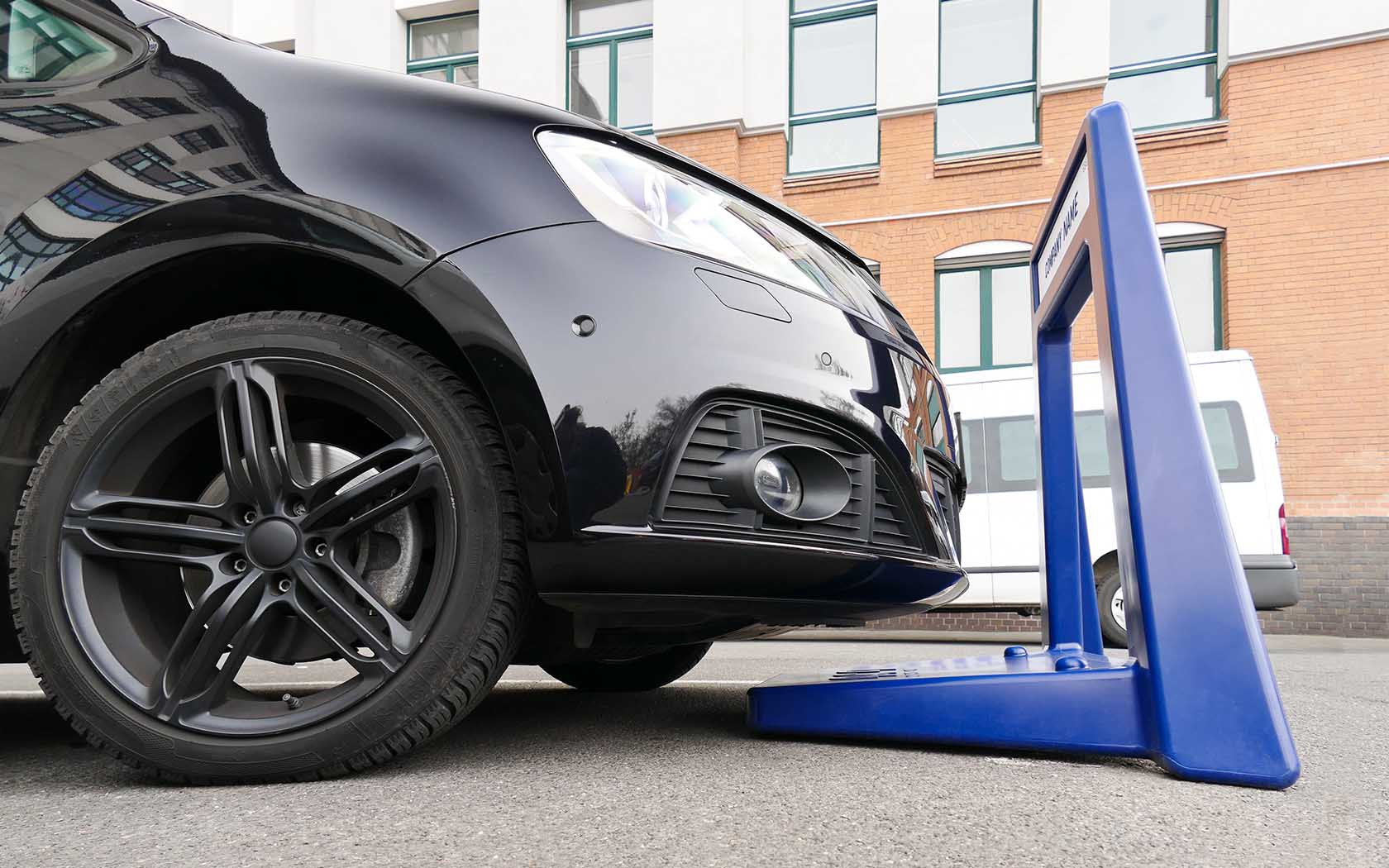

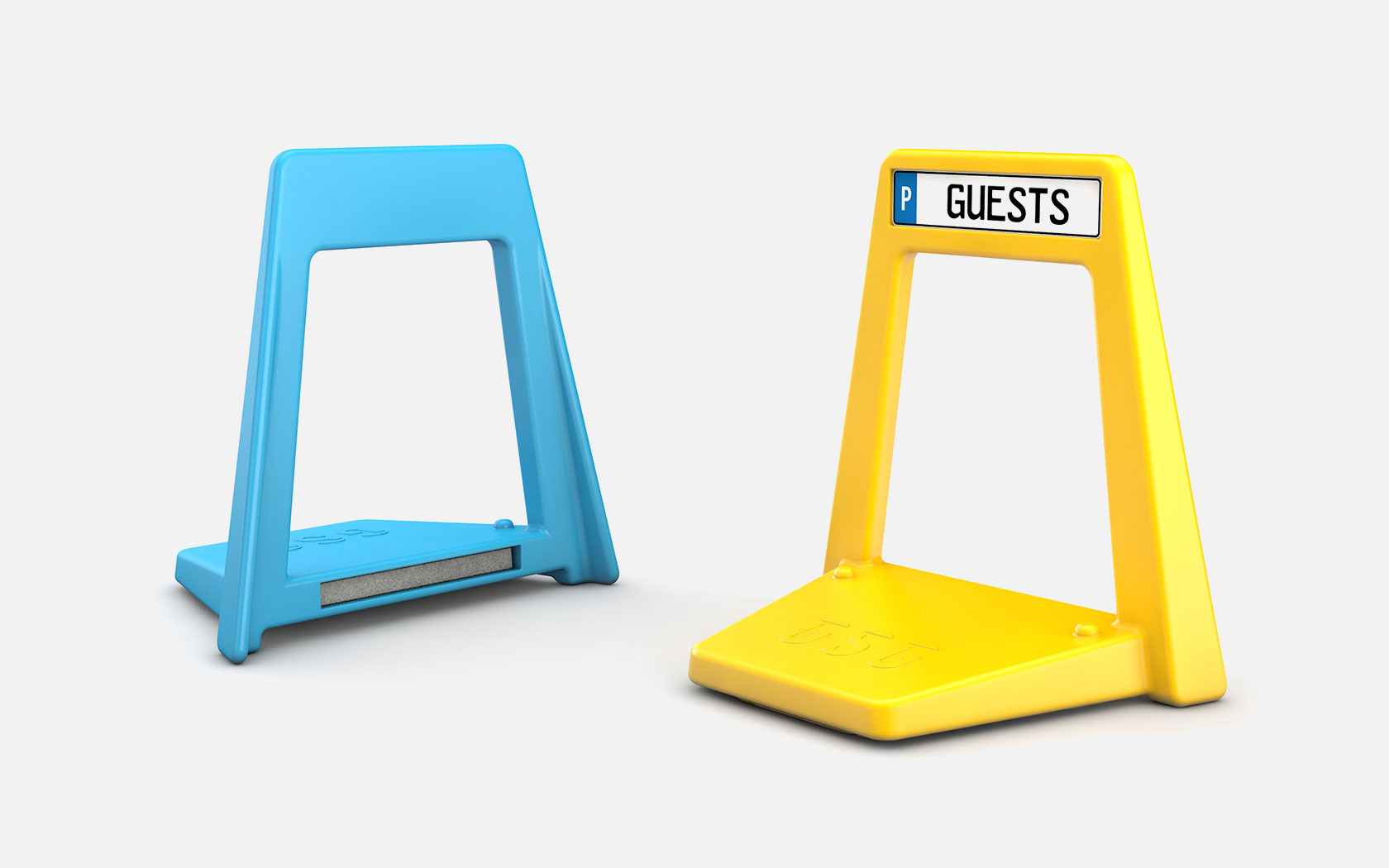

The mobile marking for parking spaces by IONDESIGN improves the quality of parking areas and expands the corporate branding of the operator in the urban environment. The innovation lies in the mobility and stackability of this product. A marking which is placed at the beginning of a parking area means: this place is blocked and free to rent. If the marking is at the end of the area, it reserves the parking space for its tenant. The wedge shape of the parking mark slopes down towards the vehicle, which makes it possible to approach the marking. When a car is parked in front of the bollard, the field in the top part, which has the size of a license plate, remains visible.  In the base a recess provides space for a removable concrete slab, which increases the stability. If the plate is inserted as far as it will go, it sinks behind a safety edge that prevents accidental slipping out. The stacking function of the product allows space-saving storage when not in use. Rotational molding as production method makes the bollard robust and weather proof.

Schöner Tisch - Tischgestell
The mobile marking for parking spaces provides clarity and optimizes the use of parking areas. IONDESIGN has a clear focus on the functionality of this product:

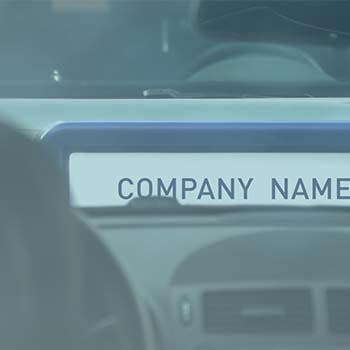

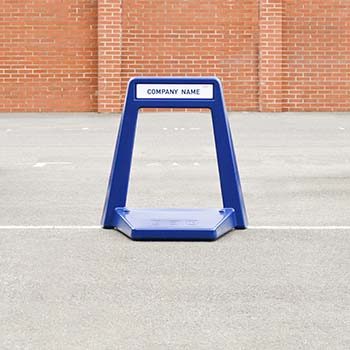

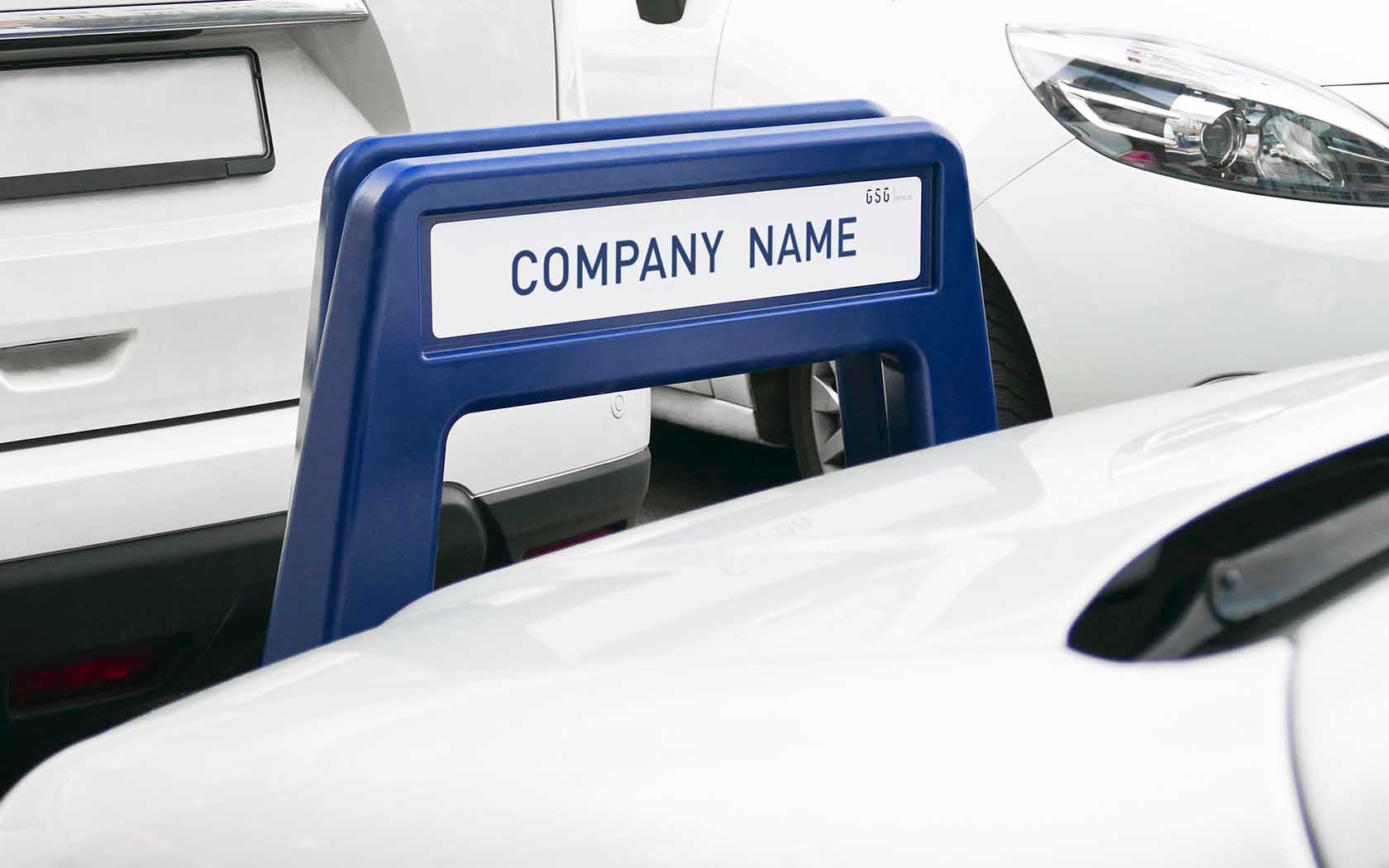

For tenants: the size of a car license plate in the upper part of the product clearly assigns the parking lot to its tenant. The marking remains visible even when a car is parked in front of it. The mobility of the product makes it possible to block the parking area by changing the position when not in use.

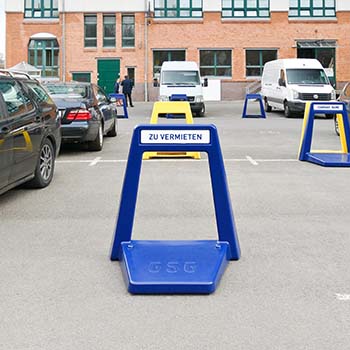

For prospective tenants: parking spaces which are not rented out are blocked by the mobile bollard. The field in the size of a license plate gives information about the contact to the landlord. The allocation can cost-effectively and flexibly be changed with foils.

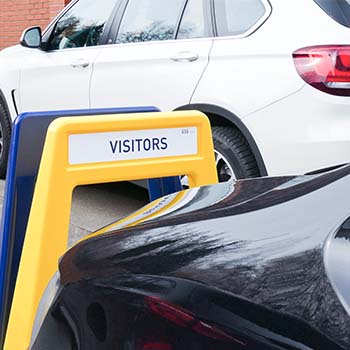

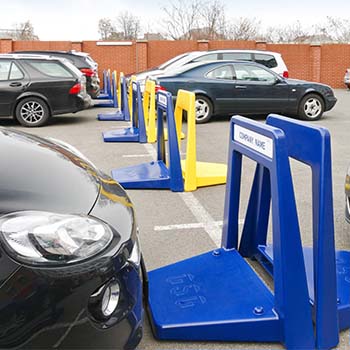

For guests: guests can easily find their parking spaces. Different colorings of the plastic allow the differentiation of different parking categories.

For operators: the mobile marking is particularly interesting for operators, who provide tenant and visitor parking spaces. The color adaptation according to the corporate design of the operator enhances the external representation of the company in the external areas. The placement of a logo on the parking mark also transforms the parking areas into an integral part of the company presentation. This considerably increases the visibility of the operator company.

Mobile Parkplatzmarkierung - Company Name
The mobile marking for parking spaces is a plastic molding. It is produced in rotational molding from PE-LLD according to DIN EN ISO 1872-1: 1999-10. There is no waste in production since rejects are reintroduced into the material cycle and are used to make new bollards. The heat generated by the machines during production is used to heat the manufacturer’s offices. The products are cooled down via a suction pump and outside air. Energy efficiency and sustainability are fundamental components of the manufacturing process.

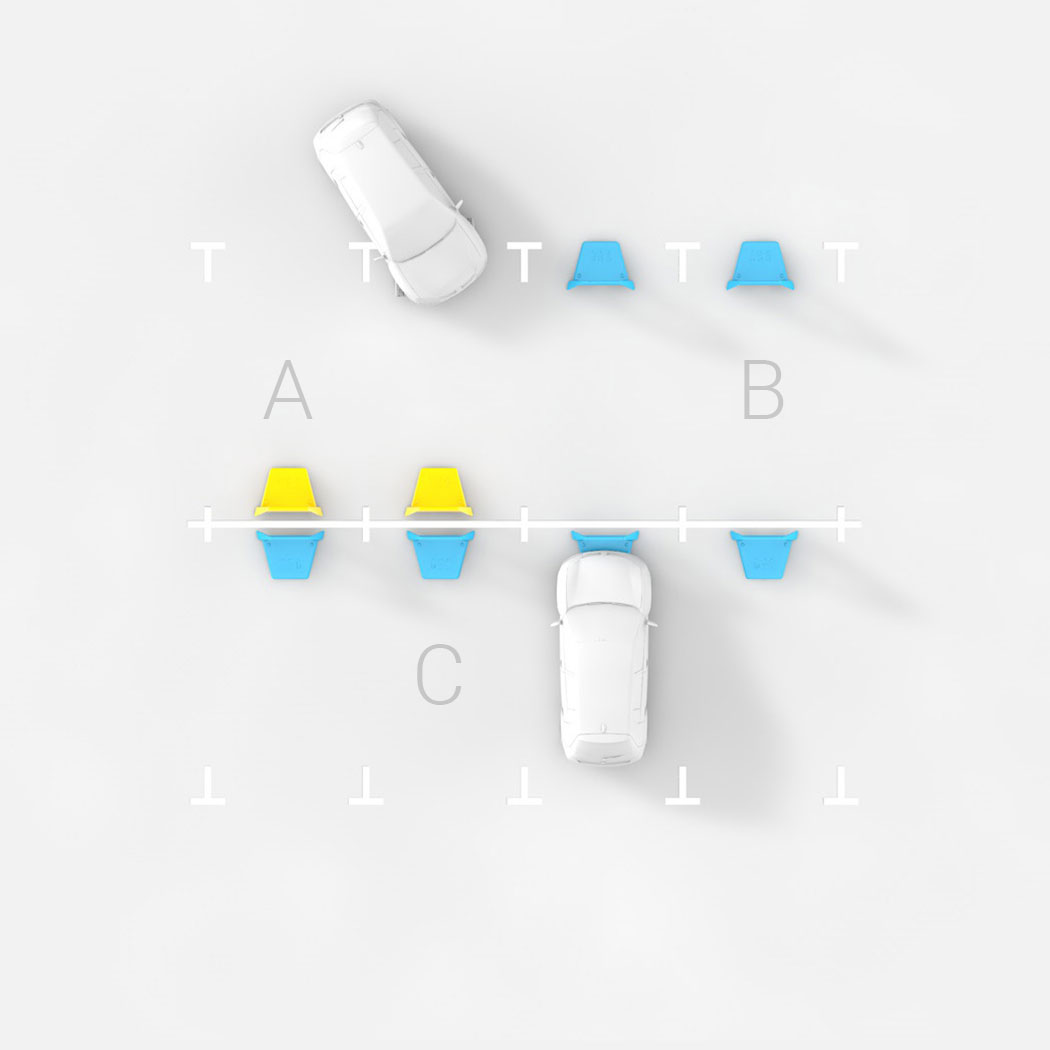

Placement

A
free parking for guests

B
blocked parking,not rented yet

C
free parking, reserved for tenants


Schöner Tisch - Tischgestell

Details

Mobiler Parkplatzpoller - Corporate Branding

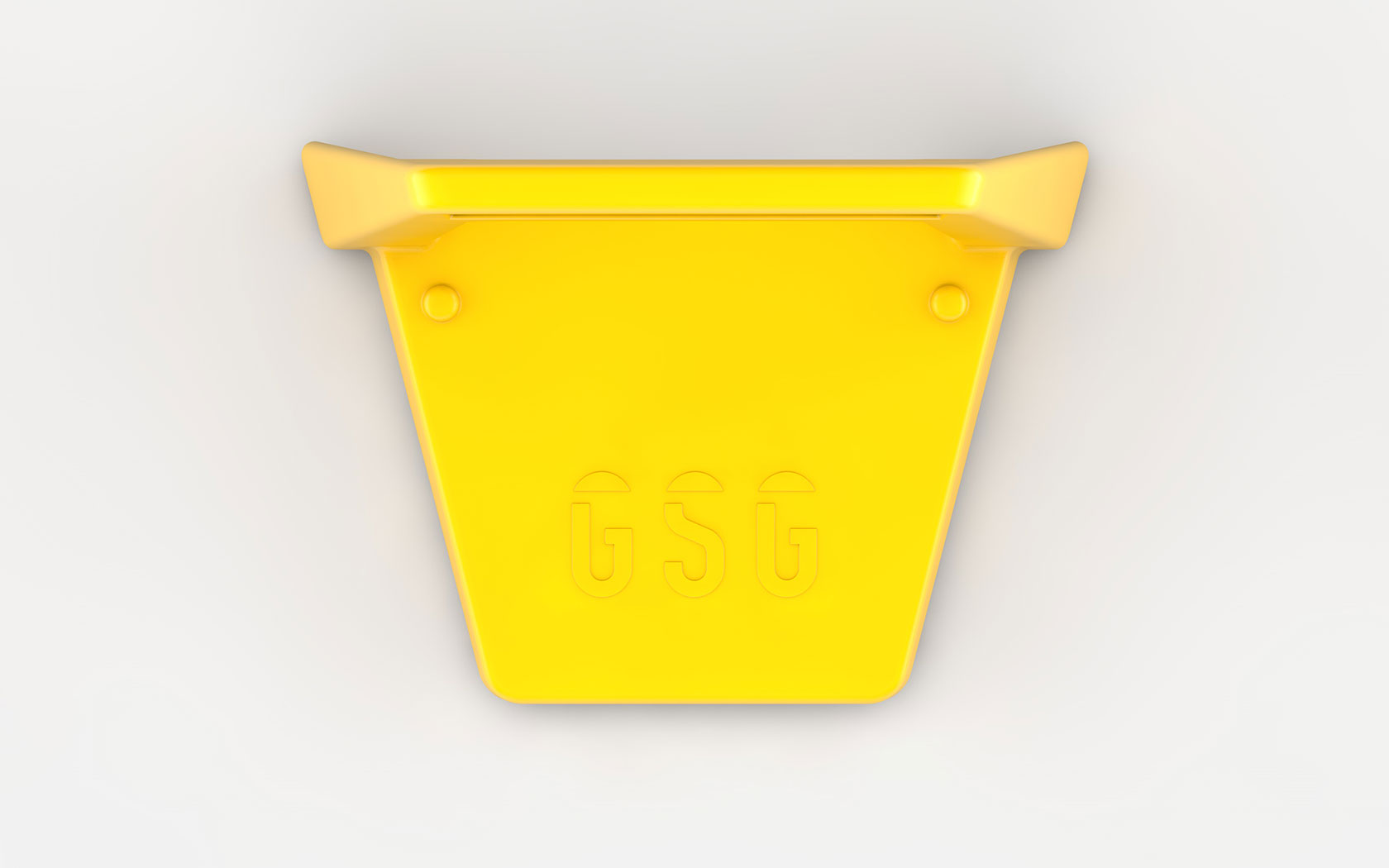

Corporate Branding

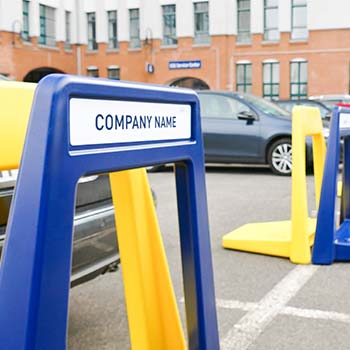

The placement of a logo on the parking mark transforms the parking areas into an integral part of the company presentation. The color adaptation according to the corporate design of the operator enhances the external representation of the company in the external areas.

Mobiler Parkplatzpoller - Stapelfunktion

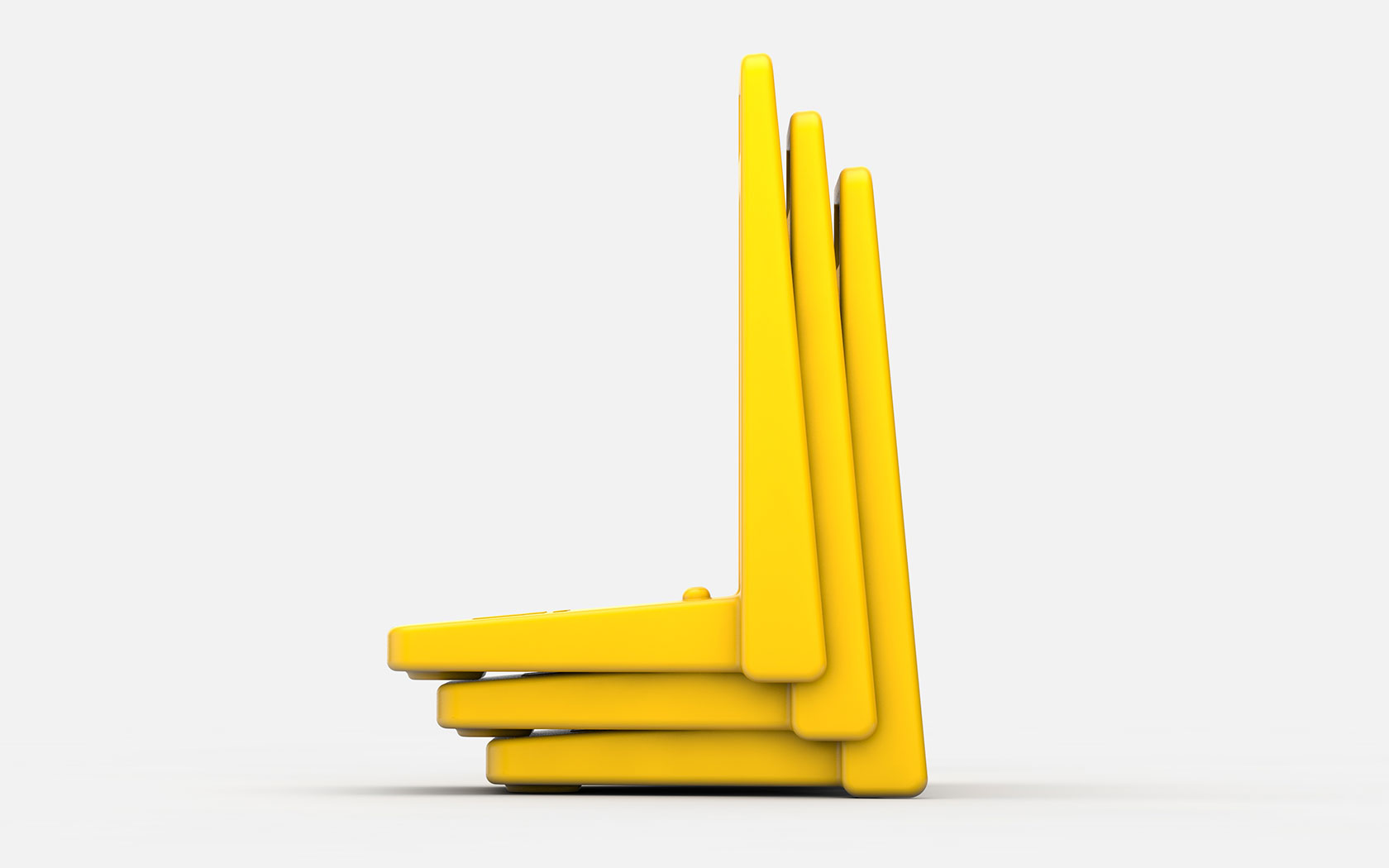

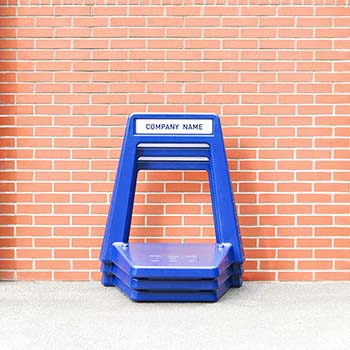

Stackability

The stacking function of the product allows space-saving storage when not in use.

Mobiler Parkplatzpoller - Standsicherheit

Stability

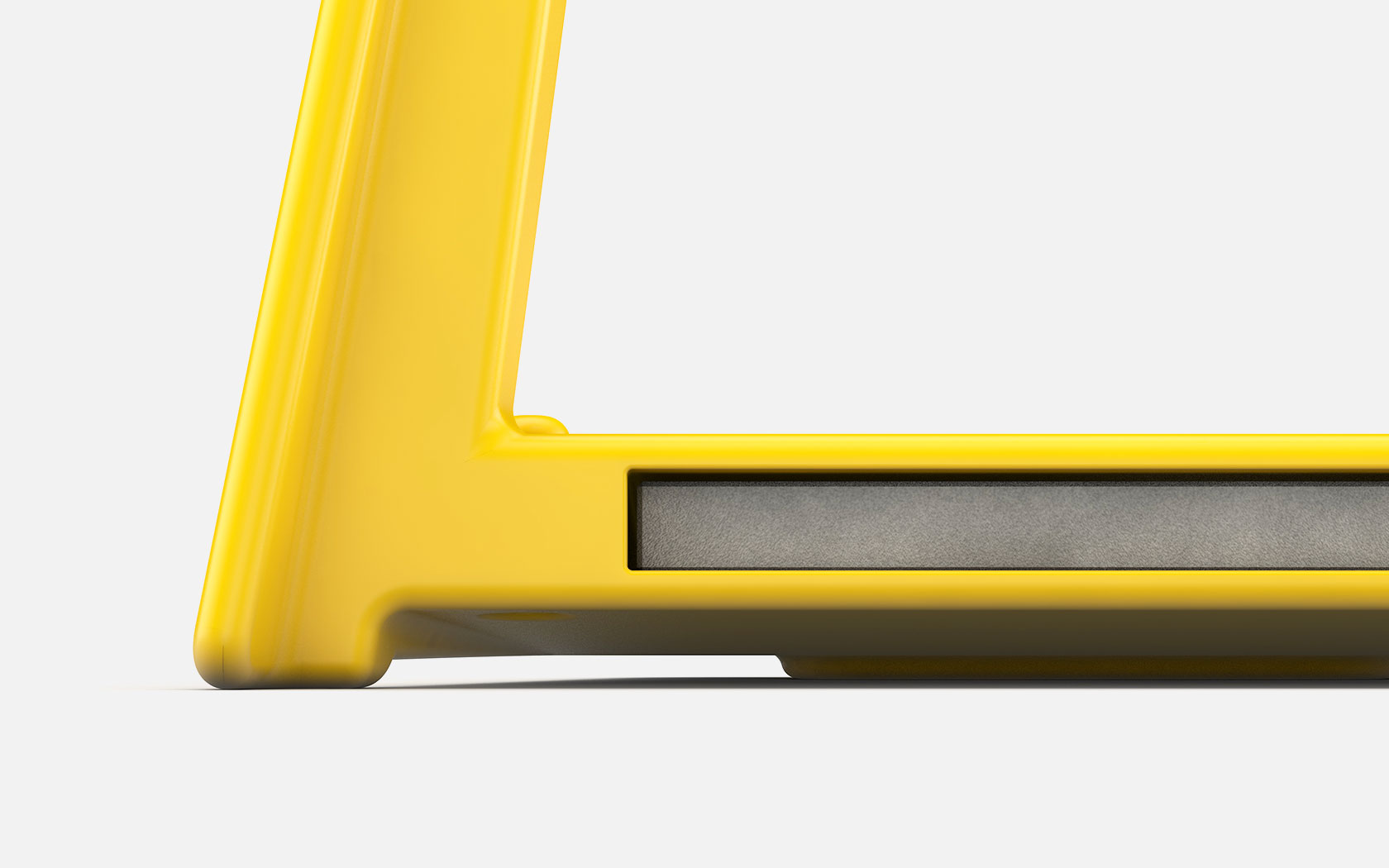

In the base a recess provides space for a removable concrete slab, which increases the stability. If the plate is inserted as far as it will go, it sinks behind a safety edge that prevents accidental slipping out.

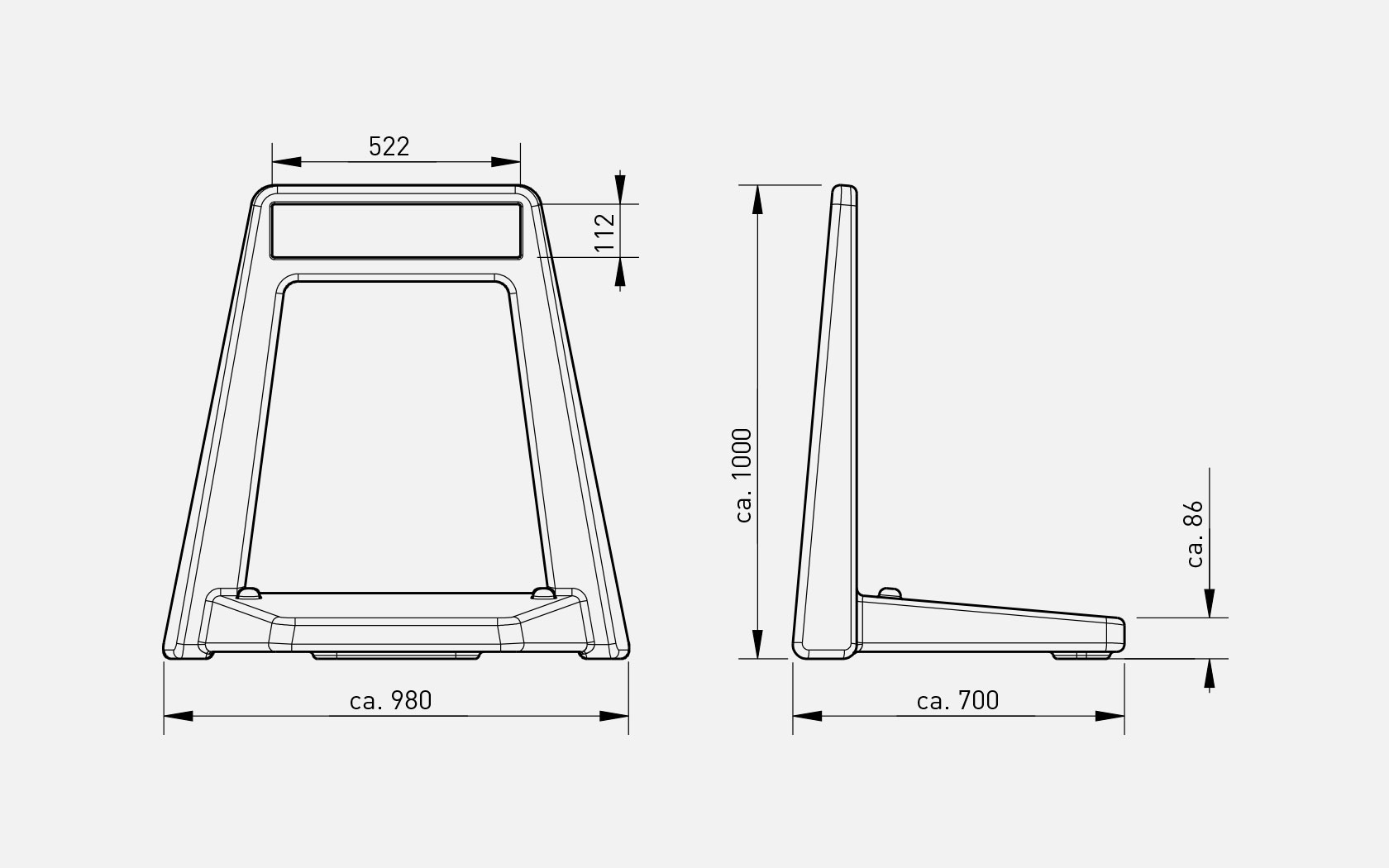

Dimensionen und Material

dimensions:
980 x 700 x 1000 mm

weight:
13,2 Kg + ballast (ca. 25 Kg)

material:
plastic

production:
rotational molding


Schöner Tisch - Tischplatte

Please contact us for enquiries. The production on demand allows the cost effective customization of colors and the placement of any logo.
